CPS-6 - Medium range combination search and height-finder Radar Set. Manufactured by General Electric Corporation. Two separate antennas, one for early warning (EW) detection and the other slanted 45 degrees to provide target height (HF). Initially, the radar was designed to detect fighter aircraft at 100 miles and 16,000 feet. The HF radar used five transmitters that operated at S-band frequencies ranging from 2700 to 3019 MHz to detect target altitude. Variants included the CPS-6, CPS-6A, and the CPS-6B. The CPS-6B was the most widely used of the variants.

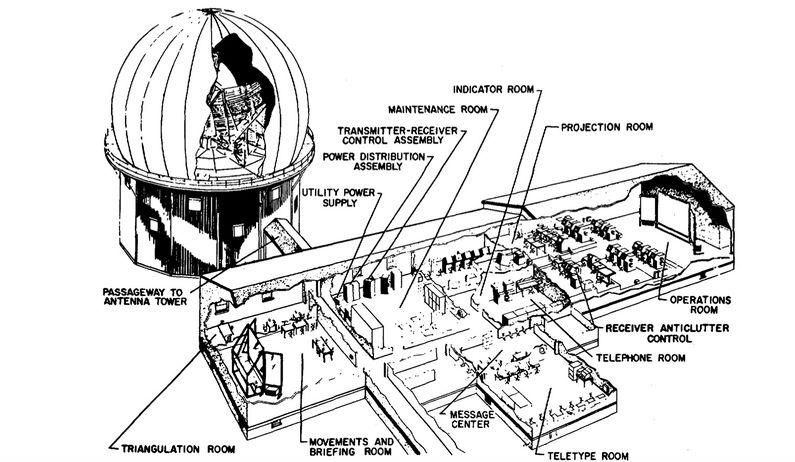

CPS-6B/FPS-10 Combination Search and Height Finder Radar Facility.

"Radar Set AN/CPS-6B is a fixed station, air transportable, high power, long-range search and height finding radar set that is used for aircraft early warning and ground controlled intercept applications. The set has a maximum range of 265 naut mi and a height finding capability of 40,000 ft. Facilities are provided for use of advanced filter techniques that eliminate the time lag inherent in passing plots through a filter room. This equipment has provisions for operational use of video mapping, direction finding, and identification equipment. Terminal facilities are also provided for voice, code or telegraph, and radio or wire communications. AN/CPS-6B is equipped with MTI and many remote operating facilities."

One CPS-6B radar unit and its ancillary electronic equipment required eighty-five freight cars for transport. The Air Force phased out the 6B model between mid-1957 and mid-1959.

CPS-6 Deployments

CPS-6 Deployments (edit list)
ID Location State Number Unit Operational Replaced Notes
P-20 Selfridge AFB MI 2 661st 1951-?? L-17
P-09 Highlands NJ 2 646th 1948-?? L-12
L-11 Santini NY 1 1950-05
L-19 Fort Niagara NY 1 1950-??
L-14 Fort Meade MD 1 1950-09
L-37 Mather AFB CA 1 668th 1950-??
L-38 Half Moon Bay CA 1 1950-??

CPS-6B Deployments

CPS-6B Deployments (edit list)
ID Location State Number Unit Operational Replaced Notes
P-01 McChord AFB WA 2 635th 1951-02 L-32
P-31 Williams Bay WI 2 755th 1951-??  ??
P-14 Saint Albans VT 2 764th 1951-09 L-3
P-34 Empire MI 2 752nd 1951-??
P-21 Lockport NY 2 763rd 1951-09 L-19
P-13 Brunswick ME 2 654th 1951-10 L-4
P-38 Mill Valley CA 2 666th 1951-10 L-38
P-30 Benton PA 2 648th 1951-10
P-58 Mather AFB CA 2 668th 1951-?? L-37
Keesler AFB MS 2 Training Sets

CPS-6B Radar Set

CPS-6 Combo Radar
Element Value Notes
Nomenclature CPS-6B
Origins
Variants CPS-6
CPS-6A
Manufacturer General Electric Corporation
Type Combo
Number Made
IEEE Band S Band
Frequency 2700-3019 Mc
PRF 600 or 300
Pulse Width 1 us at 600 pps
1 or 2 us at 300 pps
Rotation Speed 0 to 15 rpm
Continuous variable
Power 900 kw peak
2 megw, peak EW
Type 5586 and 5657 tunable magnetron
QK-254 magnetron EW
Range HF = 120 mi
EW V-Beam = 150 mi
EW S-Beam = 240 mi
Altitude 40,000 ft
Introduced B Model in the early to mid 1950s
Stock Number 5840-249-6610
CPS-6B/FPS-10 Radar Set


CPS-6B Components (edit list)
Component Model Quantity Height Width Deep Weight Notes
Antenna Assembly AS-451/CPS-6B 1 684 720 includes Arctic Tower and Bid
Radar Set Group OA-345/CPS-6B 1 60 51.5 31
Receiver-Transmitter Group OA-126/CPS-6B 2 59 45 24
Receiver-Transmitter Group OA-127/CPS-6B 2 59 45 24
Receiver Transmitter Group OA-128/CPS-6B 1 59 45 24
Radar Modulator MD-98/CPS-6B 1 43 34 34 824
Radar Modulator MD-99/CPS-6B 1 43 34 34 710
Relay Assembly RE-76/CPS-6B 1 60 36 12
Motor Generator PU-178/CPS-6B 1 19 24 54
Motor Generator PU-179/CPS-6B 1 14.35 13.35 25.35
Control Power Supply Group OA-103/CPS-6B 1 72 24 24 377
Power Supply PP-415/CPS-6B 1 30 29 40
Indicator Group OA-97/CPS-6B 5 42 21 43 394
Indicator Group OA-98/CPS-6B 4 42 21 43 500
Indicator Group OA-99/CPS-6B 10 42 21 43
Indicator Group OA-100/CPS-6B 1 42 21 43 362
Blanker-Indicator Group OA-101/CPS-6B 1 72 24 24 352
Antenna Control Group OA-110/CPS-6B 1 42 40 30
Calibrator Generator Group OA-96/CPS- 6B 1 72 24 24 219
Mixer-Blanker MX-918/CPS-6B 1 72 24 24 259
Moving Target Indicator Group OA-121/CPS-6B 1 72 24 24
Control Monitor Group OA-331/CPS-6B 1 72 24 24
Power Supply PP-415/CPS-6B 1 27 24 24
Power Control Group OA-122/CPS-6B 1 72 24 24
Plotting Board PT-105/CPS-6B 2 114 46 108
Plotting Table PT-104/CPS-6B 2 38 36.5 34
Radome Pressure Control Unit 1
Telephone System 1
Diesel Power Unit (GFE) 3

See Also:

Sources:

  • Winkler, David F., Searching the Skies: the Legacy of the United States Cold War Defense Radar Program, USAF Hq Air Combat Command, 1997, 192 pages, Pdf, page 75-76
  • The air defense of the United States, a study of the work of Air Defense Command: and its predecessors through June 1951, Directorate of Historical Services, Air Defense Command, Feb 52, Classified Secret now Declassified, page 105.
  • MIL-HDBK-162A, 15 Dec 1965.
