TPS-10 Medium Range Height Finder Radar Set - A Medium Range Height Finder Radar set built by Zenith/RCA. The original TPS-10 was developed by the MIT Radiation Laboratory during WWII. The postwar A model was produced by Zenith Corporation and following models, including the D model, produced by the Radio Corporation of America (RCA). Modified versions were produced as FPS-4 (fixed) and MPS-8 (mobile), some 450 copies of these versions were produced between 1948 and 1954.

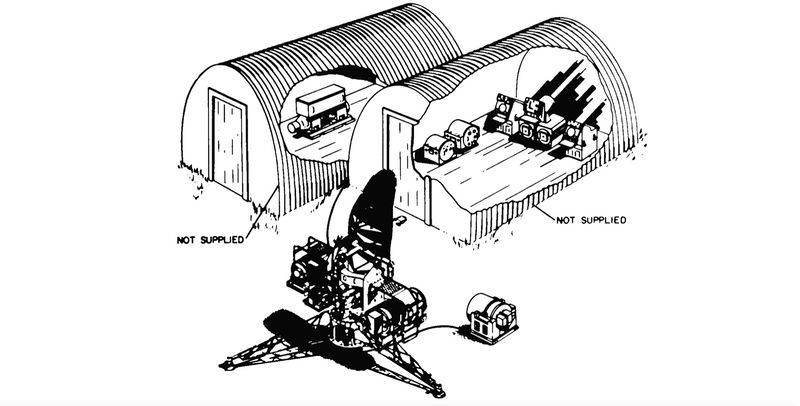

TPS-10D Height Finder Radar
TPS-10D Height Finder Radar
| Element
|
Value
|
Notes
|
| Nomenclature |
TPS-10D |
|
| Origins |
TPS-10
TPS-10A
TPS-10B |
|
| Variants |
TPS-10
TPS-10A
TPS-10B
FPS-4
MPS-8 |
|
| Manufacturer |
Zenith/RCA |
|
| Type |
Height Finder |
|
| Number Made |
450~ |
All variants
|
| IEEE Band |
X |
|
| Frequency |
9230-9404 MHz |
|
| PRF |
539 pps |
|
| Pulse Width |
0.5 or 2 usec |
|
| Rotation Speed |
Auto - 1/3 rpm
Manual - 0 to 6 rpm |
|
| Nod Speed |
Auto - 60 cpm
Manual - 30 cpm |
|
| Power |
250 kw peak |
6002 Magnetron
|
| Range |
120 nmi |
Medium Range
|
| Altitude |
-5,000 to +60,000 |
|
| Introduced |
WWII |
|
|

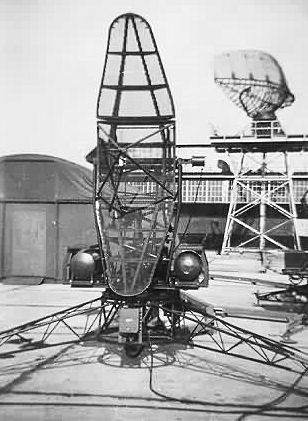

 FPS-4/TPS-10D USAF Radar Set |
 TPS-10D System Components From MIL-HDBK-162A - 15 Dec 1965:
"Radar Set AN/TPS-10D is a lightweight, medium- range height-finding equipment. The extremely narrow beam width of the antenna makes it especially adaptable for use in mountainous terrain. The set has a maximum presentable range coverage of 120 nautical mile s and a height-finding capability of -5000 to +60, 000 feet. Radar Set AN/TPS-10D is air-transportable in a type C-82 cargo aircraft without disassembly of any components other than the upper section of the antenna reflector."
TPS-10 Components (edit list)
| Component
|
Model
|
Quantity
|
Height
|
Width
|
Deep
|
Weight
|
Notes
|
| Antenna Group
|
OA-375/TPS-10D
|
1
|
157
|
126.5
|
|
1400
|
|
| Power Supply
|
PP-636/TPS-10D
|
1
|
22.25
|
23.5
|
21.75
|
85
|
|
| Radar Receiver-Transmitter
|
RT- 208/TPS- 10D
|
1
|
27.125
|
27.625
|
32.5
|
215
|
|
| Radar Modulator
|
MD-140/TPS-10D
|
1
|
22
|
24.5
|
43.25
|
185
|
|
| Power Supply
|
PP-635/TPS-10D
|
1
|
22
|
23.75
|
30.75
|
210
|
|
| Antenna Pedestal
|
AB-226/TPS-10D
|
1
|
69
|
168
|
192
|
|
|
| Waveguide Assembly
|
CG-799/U
|
1
|
10.625
|
1.625
|
15.5
|
|
|
| Antenna Pedestal Leg
|
MT- 1061/TPS- 10D
|
1
|
31.625
|
24.25
|
87.625
|
|
|
| Indicator Group
|
OA-268/TPS-10D
|
1
|
|
|
|
|
|
| Antenna Control
|
C-841/TPS-10D
|
2
|
8.875
|
14.25
|
16
|
18
|
|
| Electronic Control Amplifier
|
AM-493/TPS- 10D
|
1
|
32.75
|
35
|
49.5
|
450
|
|
| Control Indicator
|
C-840/TPS-10D
|
1
|
18.5
|
21.5
|
20.75
|
97
|
|
| Interference Blanker
|
MX-1166/TPS- 10D
|
1
|
15.5
|
18
|
22.5
|
82
|
|
| Mounting
|
MT-981/TPS-10D
|
1
|
|
|
|
|
|
| Motor Generator
|
PU-219/TPS-10D
|
1
|
31.25
|
59.5
|
22.375
|
950
|
|
| Manifold Dehydrator
|
HD- 147/TPS- 10D
|
1
|
19.75
|
28
|
22
|
150
|
|
| Standing Wave Indicator
|
IM- 65/TPS- 10D*
|
1
|
7.75
|
24
|
15.25
|
25
|
|
| Directional Coupler
|
CU- 263/TPS- 10D
|
1
|
8
|
3
|
24
|
|
|
| Waveguide Assembly
|
CG-816/TPS-10D
|
1
|
1.625
|
1.625
|
48.375
|
|
|
| Waveguide Assembly
|
CG-800/U
|
1
|
1.625
|
1.625
|
30
|
|
|
* Dimensions and weight include directional coupler CU-263/TPS-10D
