ARSR-2 Long-Range Search Radar Set - A long-range ground search radar set built by Raytheon for the Federal Aviation Administration (FAA). First deployed about 1960.
ARSR-2 Search Radar
The ARSR-2 was a long-range L-band (1215- 1400 MHz) air-route-surveillance radar built by Raytheon for the FAA. Eighteen ARSR-2s were deployed by the FAA starting about 1960. The ARSR-2 was used as a surveillance system to detect azimuth and range of en-route aircraft operating between FAA terminal areas. The ARSR-2 was an upgrade of the ARSR-1 and also used a conventional magnetron feeding 400 kW peak power into an amplitron to provide an additional 10 dB gain.

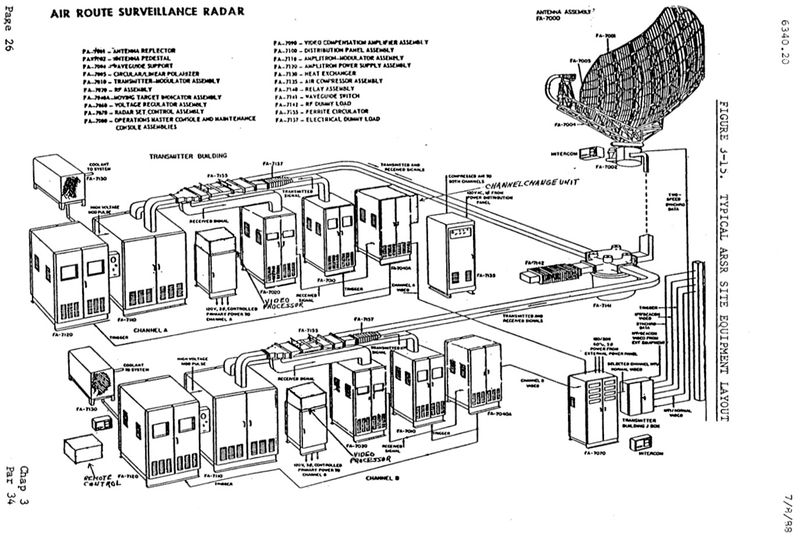

ARSR-2 Typical Equipment Layout prior to the Solid State Receiver/Digital Moving Target Indicator (SSR/DMTI) Modification.
ARSR-2 Upgrades
The ARSR-2 was based on a 1960s vintage radar that has been updated through the Service Life Extension Program (SLEP).
The ARSR-2 is usually interfaced with a collocated Common Digitizer Model 1/2 (CD-1/CD-2) or other digital processors which provided digitized output.
By 2015 all of the operating ARSR-2s had been further transformed into Common Air-Route-Surveillance (CARSR) radars with additional solid-state components that would extend the supportable life of the set into 2025.
ARSR-2 Search Radar
Element
|
Value
|
Notes
|
Nomenclature |
ARSR-2 |
|
Origins |
ARSR-1 |
|
Variants |
|
|
Manufacturer |
Raytheon |
|
Type |
Search |
|
Number Made |
18 |
|
IEEE Band |
L |
|
Frequency |
1215-1350 MHz |
|
PRF |
360 Hz |
|
Pulse Width |
2 us |
|
Rotation Speed |
5 rpm |
|
Antenna |
|
|
Power |
4 MW 2.9 KW |
Peak Average
|
Range |
200 nmi |
long range
|
Altitude |
61,000 |
|
Introduced |
1960 |
|
|
|
ARSR-2 Components (edit list)
Component
|
Model
|
Quantity
|
Height
|
Width
|
Deep
|
Weight
|
Notes
|
Antenna Assembly
|
FA-7000
|
1
|
|
|
|
|
|
-Antenna Reflector
|
FA-7001
|
1
|
|
|
|
|
|
-Antenna Pedestal
|
FA-7002
|
1
|
|
|
|
|
|
-Waveguiide Support
|
FA-7003
|
1
|
|
|
|
|
|
-Circular/Linear Polarizer
|
FA-7004
|
1
|
|
|
|
|
|
Transmitter-Modulator Assembly
|
FA-7010
|
2
|
|
|
|
|
|
RF Assembly
|
FA-7020
|
2
|
|
|
|
|
|
Moving Target Indicator Assembly
|
FA-7040A
|
2
|
|
|
|
|
|
Voltage Regulator
|
FA-7060
|
|
|
|
|
|
|
Radar Set Control
|
FA-7070
|
1
|
|
|
|
|
|
Operations Master Concole & Maintenance Console Assembly
|
FA-7080
|
1
|
|
|
|
|
|
Video Compensation Amplifier Assembly
|
FA-7040
|
|
|
|
|
|
|
Distribution Panel Assembly
|
FA-7100
|
|
|
|
|
|
|
Amplitron-Modulator Assembly
|
FA-7110
|
2
|
|
|
|
|
|
Amplitron Power Supply Assembly
|
FA-7120
|
2
|
|
|
|
|
|
Heat Exchanger
|
FA-7130
|
2
|
|
|
|
|
|
Air Compressor Assembly
|
FA-7135
|
1
|
|
|
|
|
|
Relay Assembly
|
FA-7140
|
|
|
|
|
|
|
Waveguide Switch
|
FA-7141
|
1
|
|
|
|
|
|
RF Dummy Load
|
FA-7142
|
1
|
|
|
|
|
|
Ferrite Circulator
|
FA-7155
|
|
|
|
|
|
|
Electrical Dummy Load
|
FA-7137
|
2
|
|
|
|
|
|
