Battery AMTB 944 (1943-1946) - Battery AMTB 944 was a reinforced concrete World War II AMTB rapid fire 90mm gun battery on Fort Dawes, Suffolk County, Massachusetts. Battery construction started 26 Apr 1943, was completed 9 Jun 1943 and transferred to the Coast Artillery for use 10 Sep 1943 at a cost of $ 7,625.00. Deactivated in 1946.

World War II

Part of the Harbor Defense of Boston, Massachusetts.

The AMTB battery at Deer Island consisted of two 90mm guns mounted on 90mm M3 fixed gun mounts and two 90mm guns mounted on 90mm M1A1 mobile gun mounts. Concrete pads were provided for both fixed guns and often wooden gun platforms were provided for the mobile guns. One earth covered storeroom and two generator shelters were provided. Electric power was provided by two M-7 portable generators. World War II location number 127, site number 944.

The battery had a dual mission of defense against fast enemy motor torpedo boats and enemy aircraft. The effective range of the guns was about 8,000 yards or 4.5 miles. Each weapon required a crew of 15, 9 men in the gun squad and 6 men in the ammunition squad.

AMTB Front View
AMTB Interior View
AMTB Side View
AMTB Back View

The above photos were taken at Fort Monroe, Battery Parrott

From FM 4-91: "This weapon consists of the 90-mm gun M1 and top carriage M1A1 on the 90-mm gun mount M3. The mount M3 is of the turret type, the shielding being constructed of boiler plates. This boiler plate shield provide fragmentation protection only. No shielding is provided at the rear due to the requirements for service of the piece. A sighting port in the shielding in front permits sighting in direction by the gun pointer."


  • FM 4-91 - 90-MM Gun, Fixed Mount Service of the Piece
  • FM 4-126 - Antiaircraft Artillery, Service of the Piece, 90-mm Antiaircraft Gun
  • TM 9-373 - 90-mm Gun M1 and 90-mm Gun Mount T3 (M3)

Battery AMTB 944 Armament (edit list)
Model Serial
Manufacturer Carriage Service
F1 90mm Rifle 186.15" M1 5179 Watervliet Pedestal Mount, M3, #130, Fisher 1943-1946
F2 90mm Rifle 186.15" M1 6949 Watervliet Pedestal Mount, M3, #93, Fisher 1943-1946
Source: RCW Form 1, 14 Aug 1944, CDSG, Berhow, Mark A. ed, American Seacoast Defenses: A Reference Guide, 2nd Edition, CDSG Press, McLean, VA, 2004, ISBN 0-9748167-0-1, pages 80-81

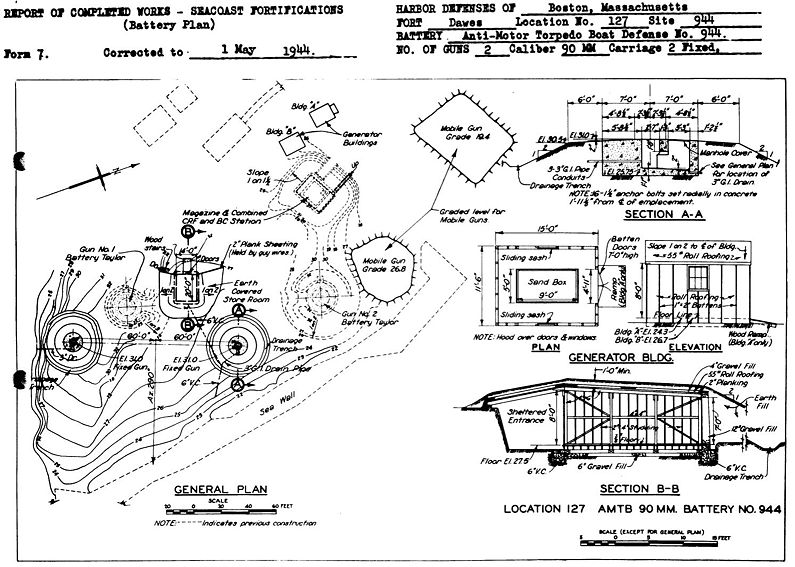

Battery AMTB 944 Plan

Current Status

Battery destroyed. No period gun or mounts in place.

Location: Fort Dawes, Suffolk County, Massachusetts

Maps & Images

Lat: 42.344716 Long: -70.953827

  • Multi Maps from ACME
  • Maps from Bing
  • Maps from Google
  • Elevation: Gun #1=35.44', Gun #2= 35.41'


  • U.S.Army, Supplement to the Harbor Defense Project of Boston, Massachusetts, (HDB-AN-45), 31 Jan 1945, CDSG


Visited: No
