CPN-18 medium range Gap-filler Radar Set - A medium range radar set originally meant as a part of an Air Traffic Control System adapted as a Gap-filler Radar set for the Experimental Sage Sub-Sector (ESS). Built by Bendix Radio in the late 1940s.
CPN-18 Gap-filler Radar
CPN-18 Gap-filler Radar
Element
|
Value
|
Notes
|
Nomenclature |
CPN-18 |
|
Origins |
|
|
Variants |
CPN-18A, 18C, 18D |
|
Manufacturer |
Bendix Radio |
|
Type |
Gap-filler |
|
Number Made |
? |
|
IEEE Band |
S-Band |
|
Frequency |
2700- 2900 mc |
|
PRF |
1500 pps/ 900 pps modified |
|
Pulse Width |
0.5 usec 1.0 usec modified |
|
Rotation Speed |
10 rpm clockwise |
|
Power |
500 kw peak min |
|
Range |
53 nmi |
medium range
|
Introduced |
Circa 1946 |
|
|
CPN-18 Medium Range Search Radar.
|

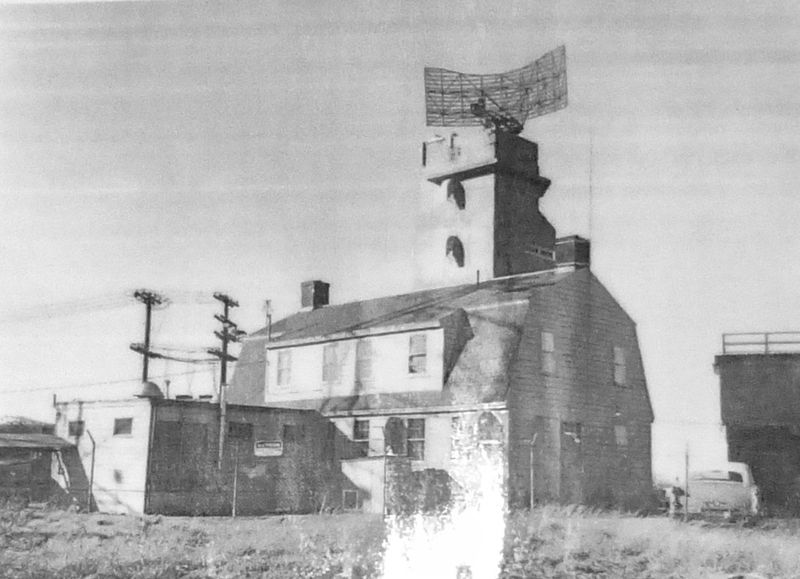

CPN-18 ESS Installation at Halibut Point Radar Site.
