FPS-26 Long Range Height Finder Radar Set - A Long Range Height Finder Radar set built by Avco Corporation. Deployed to long range radar sites in the 1960s and used within the SAGE System.
|
|
|
 Selfridge AFB Radar Site after Closure, FPS-26 Radar Tower in Center, FPS-35 Radar Tower in the Back |
FPS-26 Height Finder Radar
FPS-26 Height Finder Radar
| Element
|
Value
|
Notes
|
| Nomenclature |
FPS-26 |
|
| Origins |
|
|
| Variants |
FPS-26A |
|
| Manufacturer |
Avco Corporation |
|
| Type |
Height Finder |
|
| Number Made |
|
|
| IEEE Band |
C |
|
| Frequency |
5400-5900 MHz |
FD
|
| PRF |
|
|
| Pulse Width |
|
|
| Rotation Speed |
|
|
| Power |
5 MW ~ |
|
| Range |
|
Long Range
|
| Altitude |
|
|
| Introduced |
1960s |
|
|

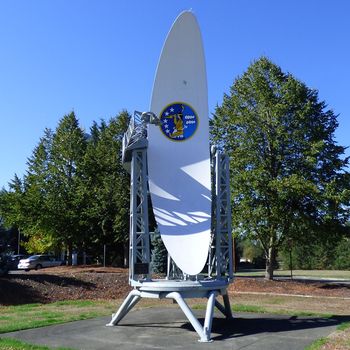

 Makah AFS FPS-26A Antenna, now at McChord AFB Former SAGE Direction Center DC-12 |
See Also:
Sources:
- Winkler, David F., Searching the Skies: the Legacy of the United States Cold War Defense Radar Program, USAF Hq Air Combat Command, 1997, 192 pages, Pdf, page 82.
- MIL-HDBK-162A, 15 Dec 1965.
