FST-2 - A Radar Data Coordinate Data Transmitter (CDT) built by Burroughs Corporation at their Paoli facility outside Philadelphia for use in the SAGE System. The FST-2 took the analog radar data, processed and digitized it and created digital target words that were transmitted to the SAGE Direction Center.
A total of 134 FST-2 CDTs were installed at SAGE System radar sites and training facilities during the late 1950s and early 1960s. Two complete sets were located in Building 2901 at Keesler Tech Training Center in Biloxi, Mississippi, where training courses were conducted. The surviving FST-2s were replaced circa 1972 with Common Digitizers, FYQ-47, and FYQ-49s. The initial 18-month FYQ-47/49 USAF/FAA replacement program was completed in February of 1973.
FST-2 Radar Data Coordinate Data Transmitter
The FST-2 was a very large duplex digital system using vacuum tube technology. Over 6900 vacuum tubes were used in each FST-2 requiring 21 air conditioned cabinets, 40 tons of airconditioning, 43.5 kva of prime power and usually a large new addition to the operations building. The FST-2B modification added two more cabinets but with newer solid state (transistor) technology to process coded responses from aircraft transponders (IFF/SIF).
The FST-2 used a magnetic drum synchronized with the radar set to store target "Hits" when sufficient hits were recorded a target message was created and sent to the direction center over voice grade 4-wire telephone circuits. Once a target was identified, the direction center could return a request for height information and slew the radar site height-finder to the correct azimuth where an operator would identify the target and transmit the target altitude to the direction center.
FST-2 Radar Data Coordinate Data Transmitter
| Element
|
Value
|
Notes
|
| Nomenclature |
FST-2 |
|
| Variants |
FST-2A
FST-2B |
|
| Manufacturer |
Burroughs Corporation |
|
| Type |
Radar Data Processor |
|
| Inputs |
Radar Video
Beacon Video
SAH/F Requests |
From Radar receivers
From Beacon receiver
From SAGE DC
|
| Outputs |
1300 bps Target Messages |
To SAGE DC
|
| Number Made |
134 |
|
| Introduced |
1959 |
|
| Stock Number |
5895-583-1140
5895-678-2621 |
FST-2A
FST-2B
|
| Cost |
$495,000 |
FST-2B
|
|
|
 FST-2B Aboard Texas Tower II circa 1961. Picture shows the solid state SIFF Cabinet opened for troubleshooting using a Tektronic 545 Oscilloscope and the Lewyt RO-65 Data Recorder |

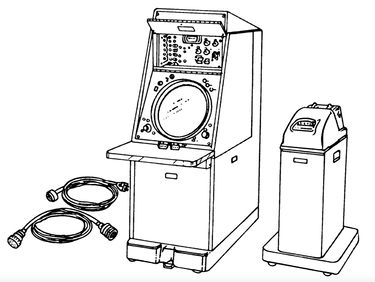

 Sketch of OA-1163/FST Coordinate Data Monitor and RO-65/FST Data Recorder |
FST-2 Major Components (edit list)
| Item
|
Component
|
Model
|
Quantity
|
Height
|
Width
|
Deep
|
Weight
|
Notes
|
| 1
|
Interconnecting Box
|
J-797/FST-2
|
1
|
|
|
|
|
|
| 2
|
Decoder-Generator Group
|
OA-2147/FST-2A
|
2
|
|
|
|
|
|
| 2
|
Decoder-Power Supply Group
|
OA-2444/FST-2B
|
2
|
|
|
|
|
|
| 3
|
Quantizer Group
|
OA-2149/FST-2A
|
2
|
|
|
|
|
|
| 3
|
Quantizer-Synchronizer Group
|
OA-2329/FST-2B
|
2
|
|
|
|
|
|
| 4
|
Coordinate Data Storage Group
|
OA-2148/FST-2A
OA-2328/FST-2B
|
2
2
|
|
|
|
|
|
| 5
|
Magnetic Drum Storage Amplifier
|
AM-210?/FST-2A
AM-2218/FST-2B
|
2
2
|
|
|
|
|
|
| 6
|
Coordinate Data Monitor
|
IP-366/FST-2
IP-498/FST-2
|
2
|
|
|
|
|
|
| 7
|
Data Processing Group
|
OA-2150/FST-2A
OA-2327/FST-2B
|
2
2
|
|
|
|
|
|
| 8
|
Power-Signal Transfer Cabinet
|
SA-621/FST-2A
SA-672/FST-2B
|
1
1
|
|
|
|
|
|
| 9
|
Data Processing Cabinet
|
MX-2668/FST-2A
MX-2753/FST-2B
|
2
2
|
|
|
|
|
|
| 10
|
Power Supply Assembly
|
PP-2210/FST-2
PP-2340/FST-2B
|
2
2
|
|
|
|
|
|
| 11
|
Converter-Shift Register Group
|
OA-2051/FST-2A
OA-2326/FST-2B
|
2
2
|
|
|
|
|
|
| 12
|
Power Control-Regulating Cabinet
|
C-2753/FST-2A
C-3005/FST-2B
|
2
2
|
|
|
|
|
|
| 13
|
Electronic Counter-Shift Register
|
CP-117/FST-2A
CP-192/FST-2B
|
2
2
|
|
|
|
|
|
| 14
|
Data Processing Automatic
Clutter Mapper Cabinet
|
????/FST-2A
|
2
|
|
|
|
|
|
| 15
|
Interconnecting Box
|
J-798/FST-2
|
2
|
|
|
|
|
|
| 16
|
Target Position Indicator
|
IP-370/FST-2
|
4
|
|
|
|
|
|
| 17
|
Motor-Generator Control
|
C-1979/FST-2
|
4
|
|
|
|
|
|
| 18
|
Motor-Generator
|
PU-367/FST-2
|
2
|
|
|
|
|
|
| 19
|
Message Console
|
OA-2140/FST-2
|
4
|
|
|
|
|
|
| 21
|
Message Console Panel
|
PT-443/FST-2
|
4
|
|
|
|
|
|
| 23
|
Coordinate Data Monitor
|
OA-1163/FST
|
1
|
|
|
|
|
|
| 24
|
Moving Target Indicator Group
|
OA-1638/FST-2
|
2
|
|
|
|
|
|
|
|
Control-Indicator
|
C-2969/FST-2
|
1
|
|
|
|
|
|
|
|
Indicator-Amplifier
|
G-2843/FST-2A
|
1
|
|
|
|
|
|
See Also:
Sources:
- Ogletree, Taylor, Veitch and Wylen, AN/FST-2 Radar-Processing Equipment for SAGE, Proceedings of the Eastern Computer Conference, December 1957, page 156-160. Pdf
- Unisys History Newsletter, V3, No 1, Mar 1999
- MIL-HDBK-162A, 15 Dec 1965.
