Memphis ARTCC (1962-Active) - One of 22 Federal Aviation Administration (FAA) Air Route Traffic Control Centers (ARTCC)s in the United States. The current facility was stablished in 1962 in Memphis, Shelby County, Tennessee. Assigned a FAA ID of ZME. Active FAA Air Traffic Control Center. Also known as Memphis Center.

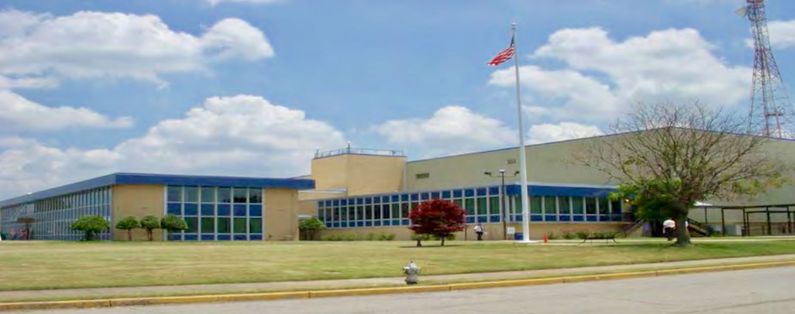

Memphis ARTCC Building.

History

The Memphis air traffic control facility was first established during World War II on 15 Jan 1942 in the old terminal building at the Memphis Municipal Airport with a staff of 26 control personnel. There was no direct radio contact with pilots until the first radio frequency was established in 1949. In 1958 the FAA was created and the facility became the Memphis Air Route Traffic Control Center (Memphis ARTCC).

The current facility is located at 3229 Democrat Rd. Memphis, Tennessee 38118, on the northeast corner of the Memphis International Airport. The facility was dedicated on 5 May 1962 and is one of 20 standardized ARTCC buildings purpose-built between 1958 and 1962 for ARTCC use. The Memphis Center covers a part of the FAA's Eastern service area.

Initially, the 20 ARTCCs in the lower 48 States were equipped with IBM 9020 computers to automate some of the ARTCC functions. In 1988 the IBM 3083 computer system known as "Host" replaced the old IBM 9020s in these ARTCCs. On 14 Jun 2012, the FAA decommissioned the 4-decades-old En Route Host computer system at the Seattle and Salt Lake City ARTCCs and replaced the system with the new En Route Automation Modernization (ERAM) system. As of 27 Mar 2015, all 20 of the lower 48 United States ARTCCs had converted to the ERAM system as had the FAA Academy in Oklahoma City, Oklahoma.

ERAM technology is the heart of the Next Generation Air Transportation System (NextGen) and the pulse of the National Airspace System (NAS), helping to advance the transition from a ground-based system of air traffic control to a satellite-based system of traffic management. ERAM can process data from 64 radars versus the 24 radar processing with the legacy HOST system.

Operation

The Federal Aviation Administration (FAA) system of 24 FAA Area Control Centers, 20 in the lower 48 United States, one in Alaska, one in Hawaii, one in Puerto Rica and one in Guam. The system operates with radar data provided by FAA radar sites, DoD radar sites, and other federal agency radar sites. These centers provide en route and oceanic services to private, commercial, and military aircraft overflying their respective control areas. As aircraft enter or exit from one control area to the next, responsibility for the aircraft is transferred to the gaining ARTCC. Voice communication between aircraft and the ARTCCs is supported by a network of ground-air radio sites often co-located with the radar sites.

The gathering of radar, beacon and other sensor data are now largely automated and continuous, but the actions necessary to control the airspace are conversational and require some 14,000 FAA air traffic controllers talking directly to pilots in the air and on the ground at terminals. This number does not include military air traffic controllers.

Memphis ARTCC (ZME)
Total Operations (aircraft handled) 2,099,894 FY2016
Total Operations (aircraft handled) 2,131,376 FY2017
Operations Rank 11/24 FY2017
En-Route Air Traffic Controllers 283 a/o 17 Sep 2016
Airspace Area (sq miles) 141,000


Memphis ARTCC Controlled Radar Sites (edit list)
FAA JSS NORAD Site St_ Equip_ Status Origin GPS ARTCC Notes
ZQPC Haleyville AL CARSR
ATCBI-6
Active 34.41556,
-87.53972
ZME
ZQXR Z-237 Russellville AR CARSR
ATCBI-6
Active 35.40278,
-92.99417
ZME
ZQYB Z-233 Byhalia
(Memphis)
MS CARSR
ATCBI-6
Active 34.85278,
-89.76583
ZME
ZQNM Newport MS CARSR
ATCBI-6
Active 32.94750,
-89.84472
ZME
ZQOJ Z-235 Joelton
(Nashville)
TN CARSR
ATCBI-6
Active Joelton AFS 36.33611,
-86.86139
ZME *

Note: This list includes only long-range FAA Radar Sites listed with this ARTCC as the Overlying Enroute Center. Adjacent ARTCC sector sites are not shown and short-range terminal radar sites are not shown.

Current Status

Active FAA facility in Memphis, Shelby County, Tennessee.


Location: 3229 Democrat Rd. Memphis, Tennessee 38118

Maps & Images

Lat: 35.06730 Long: -89.95550

  • Multi Maps from ACME
  • Maps from Bing
  • Maps from Google
  • Elevation: 270'


GPS Locations:

See Also:

Sources:

  • Facility Orientation Guide - Memphis ARTCCC
  • Administrator's Fact Book, Federal Aviation Administration, May 2019, archived 4 Jun 2019, Pdf
  • 2017-2026 Air Traffic Controller Workforce Plan, Federal Aviation Administration, 2017, archived 5 Jun 2019, Pdf
  • Air Traffic by the Numbers, Federal Aviation Administration, 2018, archived 5 Jun 2019, Pdf
  • Computer system to Improve air safety unveiled in LA, The Napa Valley Register (Napa, California), 11 Mar 1988, page 20, archived 7 Jul 2019.
