ATCBI-6

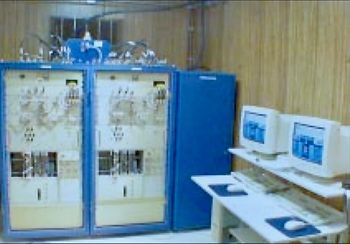

ATCBI-6 Long-Range Beacon Radar Set - A Long-Range Air Traffic Control Beacon Interrogator Model 6 (ATCBI-6) radar set built by the Raytheon Company. The Federal Aviation Administration (FAA) selected the Raytheon Company's ATCBI-6 beacon system on 4 Aug 1998 to replace the aging ATCBI-3, ATCBI-4, and ATCBI-5 beacon sets in the en-route Air Traffic Control System. The FAA awarded a contract potentially worth US$180 million to manufacture and install up to 152 ATCBI-6 systems. DT&E was completed in September 1999, and OT&E began in October 1999. Key site commissioning took place in April 2000. In August 2002, the FAA commissioned into service the first production ATCBI-6 system at Tinker AFB, Oklahoma. The last ATCBI-6 system was commissioned in FY 2013, Operation The ATCBI-6 Beacon, with Mode S selective addressing capability, obtains information from en-route aircraft, including identification, altitude, airspeed, and direction. The ATCBI-6 system integrates with existing primary surveillance radars (ARSR-4, CARSR, and FPS-117) operated by the FAA and the Department of Defense (DoD). The ATCBI-6M version supports the Mode 4 operation and appears to be deployed with all the ARSR-4 CONUS Sets (42). The regular ATCBI-6 is deployed at CARSR sites. The ATCBI-6 includes most of the functionality of a traditional Mode S interrogator but it doesn’t have the data link feature, causing some to call it "Mode S lite." It does not appear that the first 23 FAA long range radar sites to be equipped with the initial Mode S equipment have been changed to use the ATCBI-6. The ATCBI-6 provides four commonly used modes, mode 1, mode 2, mode 3/A, and mode C. Mode 1 is used to ID military targets. Mode 2 is used to identify military aircraft missions. Mode 3/A is used to identify each aircraft in the radar's coverage area. Mode C is used to report an aircraft's altitude. Mode 3/A is designated as the common military/civil mode for air traffic control use. The distribution of Mode 3/A codes is governed by The National Beacon Code Allocation Plan (NBCAP) laid out in FAA orders. Mode S is a discrete selective interrogation that ignores interrogations not addressed with a unique identity code. Mode 4 is not considered part of the ATCRBS system, but it uses the same transmit and receiver hardware. Mode 4 is used by military aircraft for the Identification Friend or Foe (IFF) system. Mark XII Mode 4 technology is the current military standard for U.S. and NATO countries. In 1995 the US Joint Chiefs of Staff ordered the development of a new Mode 5 to replace the current Mode 4 system. The transition to the new Mark XIIA Mode 5 equipment is now in process and will require a major effort for the U.S. military over the next 10-15 years. ATCBI-6 Sustainment Program From the FY 2020 President’s Budget Submission to Congress: The ATCBI-6 is a Monopulse Secondary Surveillance Radar (MSSR) with selective interrogation capability that significantly improves the accuracy of aircraft position and altitude data provided to ATC automation systems. The ATCBI-6 program commissioned the first system in FY 2002 and the last system in FY 2013. This technology refresh activity will determine the retrofit requirement for the 132 operational and seven support ATCBI-6 systems, keeping the systems operational until SENSR deployment. For FY 2020, $3.0 million is requested to support the Final Investment Decision (FID). This includes Contractor Support and Benefit Analysis, Program Management, Logistics, and Sustainability Study, System Engineering and Second Level Engineering Analysis, Shortfall Analysis, the development of an Independent Government Cost Estimate, Business Case Analysis Report, and the Initial Implementation Strategy and Planning Document. FID is planned for December 2021. Training The FAA conducts in-house training on the ATCBI-6/6M beacon system in Course FAA40675 titled "ATCBI-6/6M EHOT". The course is 120 hours long with 16 hours of lecture and 88 hours of lab work. Class size is 4 persons and they plan to conduct 10 classes in calendar year 2019 at their training academy. See FAA En-Route Radar Site Maintenance Training. ATCBI-6 Beacon Radar ATCBI-6 Beacon Radar Element Value Notes Nomenclature ATCBI-6 Origins ATCBI-3 ATCBI-4 ATCBI-5 Variants ATCBI-6M Manufacturer Raytheon Type Beacon Number in NAS 87~ ATCBI-6 42 ATCBI-6M Target Capacity 1,400 IEEE Band L-Band Transmit Frequency 1,030 MHz Receive Frequency 1,090 MHz Antenna MonoPulse Waveform ATCBI-6 ATCRBS/Mode S ATCBI-6M ATCRBS/Mode S/Mode 4 Power Range 225 mi (362 km) Long-Range Altitude 100k Feet Introduced First production Model Commissioned August 2002 at Tinker AFB Early View of ATCBI-6. See Also: US Radar Sets Sources: FAA Order JO7110.65F Effective 3 Jun 2019 - National Beacon Code Allocation Plan (NBCAP) FAA Order JO7110.65T, Effective 11 Feb 2010, Subject: Air Traffic Control, Section2. Beacon Systems. Raytheon - Identification Friend or Foe (IFF) TelInstrument - Mode 5 Links: Aviation Today - Mode S Lite in the United States Forecast International - ATCBI-6 (2005) AN/UPX-41(C) Digital Interrogator System Compatibility with the National Airspace System: Top-Level Test Plan, DoT, FAA, Op-Level Test Plan Chesapeake Fixed-Base Experiment, 4 Aug 2014, page 72. FAA Classes.
