MPS-11 Medium Range Search Radar Set - A Medium Range mobile Search Radar set built by General Electric.

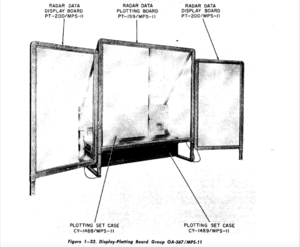

MPS-11 Manual Plotting Board
MPS-11 Search Radar System

FPS-3 System Components

**MPS-11 Components** (edit list)
Component	Model	Quantity	Height	Width	Deep	Weight
Radar Set Group	OA-379	1
Radar Set Group	OA-380	1
Antenna Group	OA-405	1
Power Supply	OA-412A	1
Transmitter Group	OA-413	1
Radar Set Group	OA-416	1
Receiver Group	OA-417	1
Tower	AB-396	1
Pulse Generator Group	OA-1263	1
Plan Position Indicator	GPA-126
Transmitter Trailer Assembly	Van V-112/MPS-11	1	89	92	230	12,000
Distribution Trailer Assembly	Van V-112/MPS-11	1	89	92	230	10,940
Antenna Truck Assembly	M-35 Type Truck	1	113	96	277	12,880
Tower Truck Assembly	M-35 Type Truck	1	113	96	277	19,300
Indicator Truck Assembly	M-35 Type Truck	1	113	96	277	18,400
Power Truck	M-35 Type Truck	2	113	96	277	19,500
Shelter Truck	M-35 Type Trucks	1 1 1	125 133 128	96 96 96	277 277 277	20,100 18,600 17,900
Spare Parts Truck Assembly	M-35 Type Truck	1	113	96	277	17,100

See Also:

Sources:

Winkler, David F., Searching the Skies: the Legacy of the United States Cold War Defense Radar Program, USAF Hq Air Combat Command, 1997, 192 pages, Pdf
MIL-HDBK-162A, 15 Dec 1965.
