Battery Vinton (1904-1920) - Battery John Vinton was a reinforced concrete, Endicott Period, 3-inch coastal gun battery on Fort Ward (2), Kitsap County, Washington State. The battery was named in G.O. 194, 27 Dec 1904, after Captain John R. Vinton, Bvt. Major, 3rd U.S. Artillery, who was killed in action at Vera Cruse, Mexico, during the Mexican-American War Battery construction started in 1903, was completed in 1903, and transferred to the Coast Artillery for use on 18 Jan 1904 at a cost of $ 10,966.50. Deactivated in 1920.

Battery Vinton, Magazine Doors Half Buried.

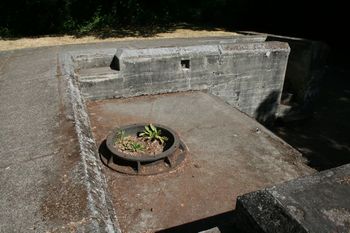

Battery Vinton Emplacement #1.

Endicott Period (1890-1910)

Part of the Harbor Defense of Puget Sound.

Originally built as an Endicott Period concrete coastal gun battery with two 3" M1898MI rapid fire guns mounted on M1898 Masking Parapet mounts. This was a two-story battery with two guns located on the upper level, two magazines, and two bombproofs located on the lower level. No shell or powder hoists were provided. An observation station was provided for each emplacement.

Battery Vinton Armament (edit list)
Empl
No
Caliber
Type
Barrel
Length
Model Serial
No
Manufacturer Carriage Service
Dates
Notes
1 3" Rifle 154.5" M1898MI 2 Driggs-Seabury Masking Parapet, M1898,
#2, Driggs-Seabury
1904-1920 See note 1
2 3" Rifle 154.5" M1898MI 5 Driggs-Seabury Masking Parapet, M1898,
#5, Driggs-Seabury
1904-1920 See note 1
Source: RCW Form 1,Sep 1925, RCB 31 Dec 1909, CDSG, Berhow, Mark A. ed, American Seacoast Defenses: A Reference Guide, 2nd Edition, CDSG Press, McLean, VA, 2004, ISBN 0-9748167-0-1, pages 70-71, 216
Note 1: Carriages transferred from Driggs-Seabury 11 Jun 1904, guns ordered removed 27 Mar 1920, carriages scrapped 20 May 1920, guns transferred to Watervliet 19 Jul 1920. CDSG Gun Card Collection from NARA
Battery Vinton Plan.


World War I (1917-1918)

The U.S. entry into World War I resulted in a widespread removal of large caliber coastal defense gun tubes for service in Europe. Many of the gun and mortar tubes removed were sent to arsenals for modification and mounting on mobile carriages, both wheeled and railroad. Most of the removed gun tubes never made it to Europe and were either remounted or remained at the arsenals until needed elsewhere. The 3" guns of Battery Vinton escaped the World War I redistribution but were removed in the 1920 disarmament program. The order to remove the guns and salvage the carriages was approved on 27 Mar 1920. The carriages were listed as scrapped on 20 May 1920 and the guns were transferred to Watervliet Arsenal on 19 Jul 1920.

In 1921 a C.R.F. range finding station was built for Battery Vinton fifty feet in back of the Battery. The C.R.F. station was accepted for service on 9 Jun 1921 at a cost of $ 1,082.34 perhaps in anticipation that the Battery would be rearmed.

Current Status

In Fort Ward State Park, Kitsap County, Washington State. No period guns or mounts in place. The lower part of the battery is buried.


Location: Fort Ward State Park, Kitsap County, Washington.

Maps & Images

Lat: 47.58134 Long: -122.52568

  • Multi Maps from ACME
  • Maps from Bing
  • Maps from Google
  • Elevation: 36.67'



GPS Locations:


Sources:

Links:

Fortification ID:

  • WA0069 - Battery Vinton

Visited: 20 Jul 2008
