Denver FAA Radar Site (1963-Active) - A Federal Aviation Administration (FAA) Long-Range Radar (LLR) site first established in 1963 near Parker, Arapahoe County, Colorado. The site is used to identify and track military and civilian aircraft movements within a 200-mile radius and to provide air-ground radio communication with those aircraft. Assigned a SAGE System ID of Z-212 and an FAA ID of QPK. Active FAA Radar Site. Also known as Parker FAA Radar Site.

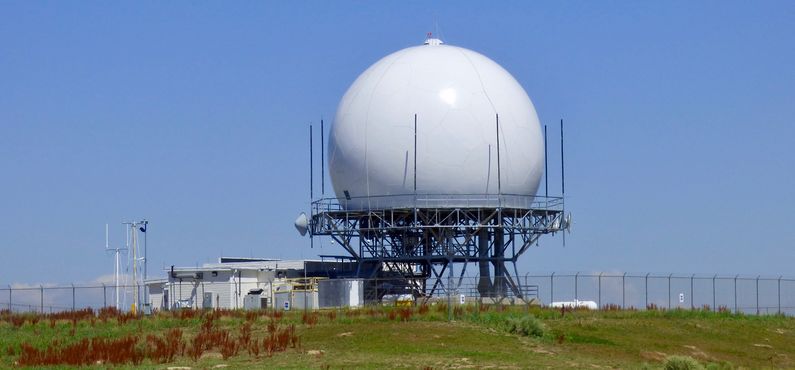

Denver FAA Radar Site.

History

This site became an FAA radar site in 1963, furnishing radar track data to the FAA ARTCC's and to USAF Direction Centers. The initial FAA ARSR-1 search radar was later modified to become an ARSR-1D that remained in operation until it was modified to become a Common Air Route Surveillance Radar (CARSR) circa 2015.

A FYQ-47 Common Digitizer was probably placed in service by February 1973 when the USAF/FAA FST-2 to FYQ-47 replacement program was completed. By 1990 the site was equipped with an ARSR-1E search radar and a CD-2A Common Digitizer. The Denver CD-2A was scheduled to receive an upgrade kit to implement three level weather data processing in May 1992.

Mode S Beacon System

Mode S Equipment Typical Installation

The Denver FAA Radar Site was selected in the 1990s to become one of 21 long-range radar sites to have a Mode S radar beacon system installed. The Mode S system allowed operation in the existing beacon modes but added features to improve beacon operation by allowing aircraft identification with a single interrogation and two-way digital communication between controllers and pilots.

Besides the 21 long-range sites, there were other short-range radars to be upgraded for a total of 137 sites on the implementation list. Denver was #085 on the list, scheduled to receive the Mode S equipment on 30 Jul 1994. Installation required interfacing with the radar system, addition of a beacon antenna on top of the search radar antenna, a new larger radome, interfacing with the Common Digitizer (CD-2) if installed, additional communication lines and equipment.

CARSR Radar

The nationwide replacement program converting FAA legacy radar systems to the CARSR radar configuration was completed by 17 Aug 2015 and Denver FAA Radar Site was a part of that program. Legacy FAA radars underwent a Service Life Extension Program (SLEP) that replaced key components in the vintage ARSR-1, ARSR-2, FPS-20, FPS-66 and FPS-67 radars. The CARSR program replaced legacy klystron radar transmitters with a solid-state transmitter as well as renovating the radar receiver and signal processor. The CARSR modification also included common digitizer functionality making a separate common digitizer unnecessary. The Denver FAA Radar Site is now operating with the CARSR radar. The secondary radar at this site is a Mode S Beacon set.

The radar site data is now available to the USAF/NORAD Battle Control System-Fixed (BCS-F) operations centers (EADS & WADS) as well as the FAA Denver ARTCC (ZDV) and adjacent ARTCCs. Other federal agencies have access to the data under the Homeland Security umbrella.


Denver FAA Site Major Equipment List
Search Radar HF Radar Data Systems Scopes Comm IFF/SIF/Beacon

Current Status

Active FAA facility near Parker in Arapahoe County, Colorado.


Location: Near Parker in Arapahoe County, Colorado.

Maps & Images

Lat: 39.59417 Long: -104.69306
