Fort Flagler (1897-1953) - An Endicott Period coastal fort established in 1897 and activated on 27 Jul 1899. Named in G.O. 138, 27 Jul 1899, after Brig. Gen. Daniel Webster Flagler, Chief of Ordnance, U.S. Army, who died on 29 Mar 1899. Located on Marrowstone Point, Jefferson County, Washington. The fort was closed on 7 Jun 1953.

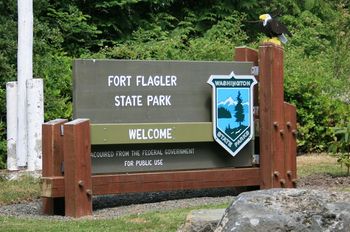

Fort Flagler Entrance Sign

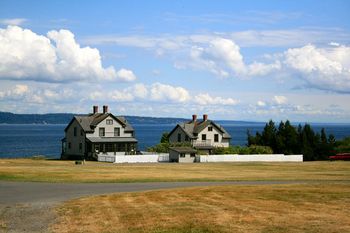

Fort Flagler NCO Quarters now Guest Quarters
Fort Flagler North Side Parade Ground and World War II Barracks
Fort Flagler South Side Parade Ground

Endicott Period

Part of the Harbor Defense of Puget Sound. Fort Flagler, along with Fort Worden and Fort Casey (1), guarded the entrance to Puget Sound. These posts, established in the late 1890s, became the first line of a fortification system designed to prevent a hostile fleet from reaching the Bremerton Naval Yard and the cities of Seattle, Tacoma, and Everett.

Fort Flagler was originally constructed with three coastal gun batteries, Battery Revere, Battery Wilhelm, and Battery Rawlins. The contract for the construction of these original gun batteries was awarded on 22 Jun 1897, to the Pacific Bridge Company, Portland, Oregon. The batteries were completed in 1899 but not accepted for service until 17 Aug 1902. Two additional batteries, Battery Bankhead and Battery Lee were completed in 1900 and 1902 respectively and they were also accepted for service on 17 Aug 1902.

Initial construction of barracks and support facilities (12 buildings total) was complete in June 1899 and the Post was activated on 27 Jul 1899. The first garrison was a detachment of 86 Enlisted men and three Officers from Battery B, 3rd U.S. Coastal Artillery, commanded by Capt. John D.C. Hoskins (Cullum 2255). Fort Flagler was made Headquarters of the Harbor Defense Command of Puget Sound because Fort Worden did not yet have permanent facilities complete. On 4 Sep 1904, the headquarters of the Harbor Defense Command of Puget Sound was transferred from Fort Flagler to Fort Worden.

Four additional batteries, Battery Grattan, Battery Calwell, Battery Downes and Battery Wansboro were completed in 1905-1906 and all were accepted for service on 23 Apr 1907. The total cost just to build the batteries themselves (excluding the guns and carriages) was about $ 460,000.



Fort Flagler Endicott Period Battery (edit list)
Battery
Click on Battery links below
No. Caliber Type Mount Service Years Battery Cost Notes
Battery Bankhead 8 12" Mortar 1900-1902-1902-1942 $ 89,584 4 Mortars removed in 1918
Battery Wilhelm 2 12" Altered Gun Lift 1897-1899-1902-1942 $ 71,191 Named for Capt. William H. Wilhelm (Cullum 3272).
Battery Rawlins 2 10" Barbette 1897-1899-1902-1918 $ 60,000
Battery Revere 2 10" Barbette 1897-1899-1902-1941 $ 60,000 Guns to Canada
Battery Calwell 4 6" Disappearing 1903-1905-1907-1917 $ 89,500 Guns to France
Battery Grattan 2 6" Disappearing 1904-1906-1907-1917 $ 48,000 Guns to France
Battery Lee 2 5" Balanced Pillar Mount 1899-1900-1902-1918 $ 15,500 Named for Lt. Walter H. Lee (Cullum 3998). Guns to Grays Harbor
Battery Downes 2 3" Pedestal Mount 1904-1906-1907-1946 $ 12,000
Battery Wansboro 2 3" Pedestal Mount 1903-1905-1907-1946 $ 14,000 Guns Replaced in 1960
Source: CDSG

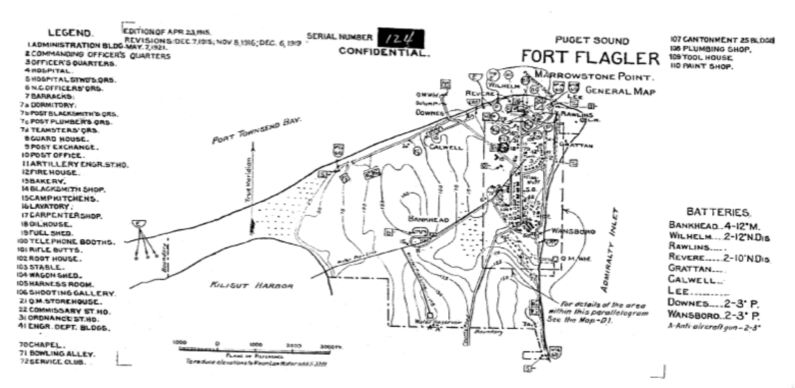

Fort Flagler Map


World War I

During World War I eight of the fort's guns were sent to Europe and converted to the field or railway guns and 2 were sent to Canada. After World War I Fort Flagler was used as an ROTC training center.

World War II

During World War II and the Korean War the fort was used for training in amphibious warfare.

Fort Flagler World War II Battery (edit list)
Battery
Click on Battery links below
No. Caliber Type Mount Service Years Battery Cost Notes
Battery AMTB - Marrowstone Point 2
2
90mm
90mm
Fixed Pedestal Mounts
Mobile Mounts
1943-1943-1944-1946 $ 8,842
Battery Rawlins 3 3" AA 1942-1943-1944-1946 $ 11,000
Source: CDSG

Cold War

At the end of the Korean War, Fort Flagler was deactivated on 7 Jun 1953. The property was purchased by the State of Washington as a state park in 1955.


Fort Flagler Partial Commanders List (edit list)
Assumed Relieved Rank Name Cullum Notes
1899-09-06 1901-07-16  Capt. Hoskins, John Deane Charles 2255 While commanding post, he was promoted to Major, July 1, 1901.
1903-02-26 1903-05-30  Capt. Summerall, Charles Pelot 3469
1904-09 1906-05  Maj. Deems, Clarence 2521
1906-10-05 1908-12-17  Maj. Bartlett, George True 2888
1909-09 1911-11  Maj. Walke, Willoughby 2984 While commanding post, he was promoted to Lieut.‑Colonel, March 3, 1911. The dates of his command are from Cullum's Register and overlap those of the next.
1911-09-20 1911-09-30  Maj. Hayden, John Louis 3243 The dates of his command are from Cullum's Register and overlap those of the preceding.
Dates are formatted in yyyy-mm-dd to sort correctly.
The Cullum Number is the graduation order from the United States Military Academy by year and class rank and links to a page for the officer on the website version of the Cullum Register. Listings without a Cullum Number indicate that the person was not a graduate of the United States Military Academy.

Current Status

A part of Fort Flagler State Park, Jefferson County, Washington. Period guns and carriages were installed in Battery Wansboro.


Location: Fort Flagler State Park, Jefferson County, Washington.

Maps & Images

Lat: 48.09767 Long: -122.69647

  • Multi Maps from ACME
  • Maps from Bing
  • Maps from Google
  • Elevation: 105'



GPS Locations:


Sources:

Links:

Fortification ID:

  • WA01440 - Fort Flagler

Visited: 17 Aug 2022, 26 Aug 2015, 18 Jun 2009, 19 Jul 2008
